Strobe White HERA

Kód: 15446

Neohodnoceno

Značka: Raylight Aricraft

5 056,60 Kč 4 179 Kč bez DPH 5 056,60 Kč / 1 ks

Na objednávku

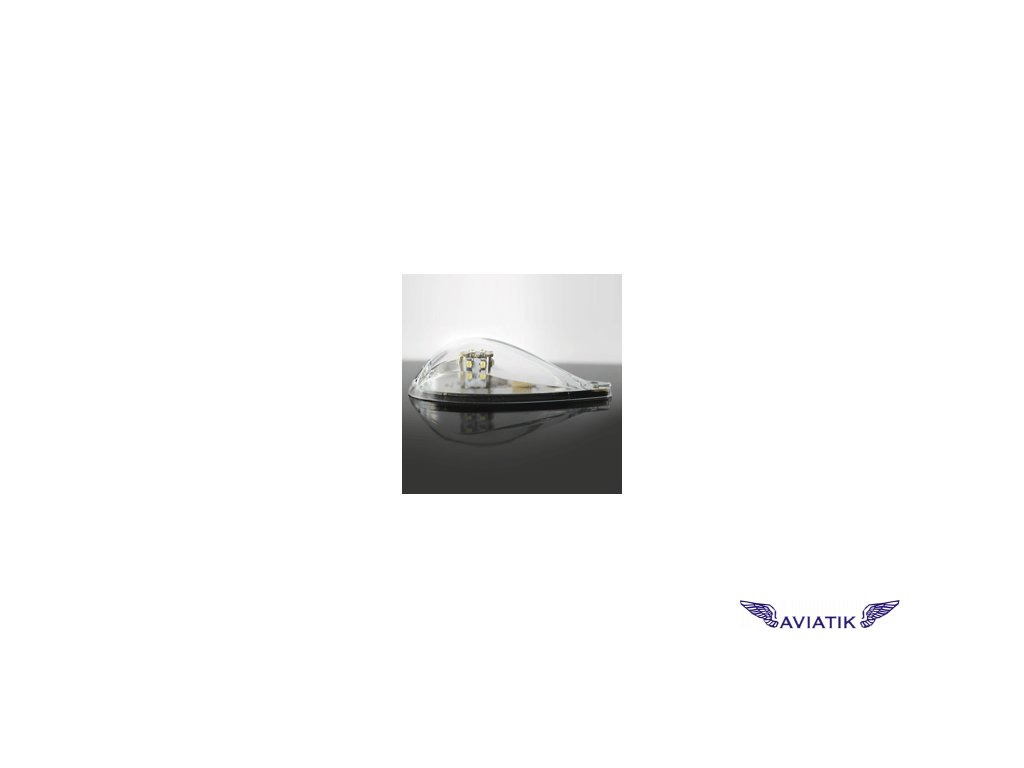

Zábleskový maják firmy Raylight Aricraft, v aerodynamickém krytu, velmi lehký, lze sinchronizovat s dalšímy produkty

Detailní informace

Zobrazit všechny související produkty

Detailní popis produktu

	Hera	Hermes
lumens	20,000	20,000 X 2	13,300 X 3
candelas	1,900	1.900 x 2	1.267 X 3
Numbers of white LEDs	20	20 X 2	3 X 20
Number of LEDs RWG \| position lights		7 X 2	7 X 2
Uniform consumption \| AT	0.4	0.4 to 1.2	0.4 to 1.2
Voltage \| Vdc	10-15	10-15	10-15
Electrical protection	Over-voltage and polarity reversal	Over-voltage and polarity reversal protection for disconnected LED + shortcircuit protection for LEDs	Over-voltage and polarity reversal protection for disconnected + LED + Shortcircuit protection for LEDs
Frequency \| Synchronized flashes per minute	45-50	45-50	45-50
Type of lens	UV resistant polycarbonate (ULV 0)	UV resistant polycarbonate (ULV 0)	UV resistant polycarbonate (ULV 0)
Total weight (+/- 5) \| g	160 grams	315 grams	355 grams
Strobe weight \| g	40 grams	40 grams	40 grams
Generator weight (+/- 5) \| g	120 grams	235 grams	235 grams
dimensions \| L x W x H \| in	4.72 x 1.77 x 1.38	4.72 x 1.77 x 1.38	4.72 x 1.77 x 1.38
dimensions \| LxWxH \| mm	120 x 45 x 35	120 x 45 x 35	120 x 45 x 35
Fixing (included)	4 M3 screws \| 4 brakes nuts	4 M3 screws \| 4 brakes nuts	4 M3 screws \| 4 brakes nuts
Between axis \| in	4	4	4
Between axis \| mm	101.5	101.5	101.5
Generator Dimensions \| L x W x H in	3.5 x 2.2 x 2.2	4.2 x 2 x 2.3 .6	4.2 x 2 x 2.3 .6
Generator Dimensions \| LxWxH \| mm	90 x 57 x 57	107 x 67 x 59	107 x 67 x 59
Between generator's axis \| L x W	3.1 x 1.6	3.8 x 2	3.8 x 2
Between generator's axis \| L x W mm	78 x 40	96 x 50	96 x 50
Generator electrical connection	2 standard terminal blocks with quick connection.	2 standard terminal blocks with quick connection.	2 standard terminal blocks with quick connection.
Without tools - no length limit	Section from 0.25 to 0.75 mm² (Advisable 0.5 mm²) AWG 19-23	Section from 0.25 to 0.75 mm² (Advisable 0.5 mm²) AWG 19-23	Section from 0.25 to 0.75 mm² (Advisable 0.5 mm²) AWG 19-23
