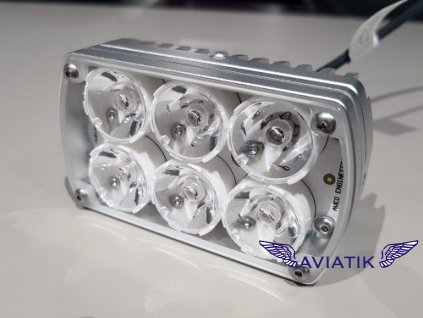

PowerBurst NG DayLite PowerBurst
Kód: 7747Související produkty
Detailní popis produktu
| Dimensions (mm): | 115 mm x 33 mm x 26 mm |
|---|---|
| Dimensions (inches): | 4.547” x 1.302” x 1.024” |
| Weight: | 70 g / 2.47 oz |
| Operating Voltage Range: | 9 – 18 V DC |
| Input Current – Position / Nav - green (@14V): | 0.28 A |
| Input Current – Position / Nav - red (@14V): | 0.23 A |
| Input Current – Strobe (@14V): | 2 A peak |
| Output Power - Position / Nav - green: | 3.3 W |
| Output Power - Position / Nav - red: | 2.5 W |
| Output Power - Strobe: | 24 W peak |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M3, stainless steel recommended. Length depends upon placement location on wing tips. |
| Ambient Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | No |
| Under-Voltage Protection: | No |
| Over-Voltage Protection: | No |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof: | Yes |
Doplňkové parametry
| Kategorie: | Nav-Pos-Strobe |
|---|---|
| Potřeby pro letadla: | Světla |
